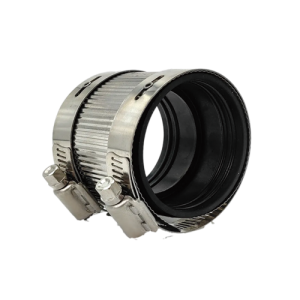

NO-HUB Coupling
Item No.: DS-AH
The No-Hub Coupling has a patented shield design that provides maximum transfer of pressure from the clamps to the gasket and pipe. Engineered to connect no-hub cast iron pipe in applications, replacing the less-efficient hub and spigot. -
DS-TC Pipe Coupling
DS-TC Pipe Coupling
·It can be used in the surroundings where high security and
stability is required.
·Its can fully meet with the special requirement of warship
building.
·The highest pressure can reach up to 5.0mpa
·It can be used on pull-out resistant pipeline connection on
vessel building and offshore oil-drilling platform. -
Strengthen Pipe Coupling
DS-HC Pipe Coupling
· It is be used in the surroundings where high security and stability is
required.
· Its advantage and characteristics can fully meet with the special
requirement of warship building.
· The strengthened lip seal allows higher thermo-compression
variation, and the minimal bolt torque may expand the life cycle of
the seal.
· The highest pressure can reach up to 5.0mpa
-
Universal Pipe Coupling
Application Universal coupling is used for connecting pipes from various materials Design features Large tolerance The bolt ends are protected with plastic caps Technical Characteristics Maximum working pressure: PN16 / 16 bar Working temperature: 0°C – +70°C Color RAL5015 Powder epoxy coating 250 μm thickness Bolts, buts and washers – carbon steel 8.8 hot dip galvanized Maximum angular deflection – 4° Dimensions DN O.D Range D Bolts Bolt Qty. Weight Stock 50 57-... -
Universal Flange Adaptor
Application Universal flange adaptor is used for connecting various pipe materials with flanged fittings Design features Large tolerance Universal drilling for compatibility with both PN10 and PN16 The bolt ends are protected with plastic caps Technical Characteristics Flange end connections according to EN1092-2: PN10/PN16 Maximum working pressure: PN16 / 16 bar Working temperature: 0°C – +70°C Color RAL5015 Powder epoxy coating 250 μm thickness Bolts, buts and washers – carbon ... -
Dismantling Joint
Technical Characteristics Flange end connections according to EN1092-2: PN10/PN16 Designed according to EN545 Maximum working pressure: PN16 / 16 bar Working temperature: 0°C – +70°C Color RAL5015 Powder epoxy coating 250 μm thickness Body from ductile iron EN-GJS-500-7 Bolts, nuts and washers – hot dip galvanized 8.8 carbon steel Gasket – EPDM or NBR Dimensions DN Flange drill. D L1min L1max Bolts Qnty & Hole Size Weight 50 PN10/16 165 170 220 M16 4×19 9... -
Coupling for PE/PVC pipes
Application Restrained couplings dedicated for PE and PVC pipes Design features Restrained connection with brass ring prevents axial movement of the pipe Technical Characteristics Maximum working pressure: PN16 / 16 bar Working temperature: 0°C – +70°C Color RAL5015 Powder epoxy coating 250 μm thickness Bolts, nuts and washers: A2 stainless steel Locking ring- Brass Sealing gasket- EPDM Body- ductile iron EN-GJS-500-7 Dimensions DE L D L1 KG 63 171 124 80 2.6 75 175 138 8... -
Flange Adaptor for PE/PVC Pipes
Application Flange adaptors dedicated for PE and PVC pipes Design features Restrained connection with brass ring prevents axial movement of the pipe Technical Characteristics Flange end connections according to EN1092-2: PN10&PN16 Maximum working pressure: PN16 / 16 bar Working temperature: 0°C – +70°C Color RAL5015 Powder epoxy coating 250 μm thickness Bolts, nuts and washers – A2 stainless steel Sealing gasket EPDM Locking ring- brass Dimensions DN Flange drill. DE ...
