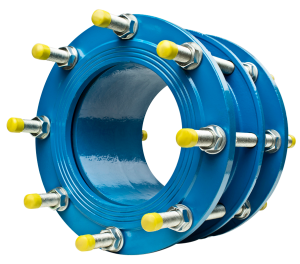

Dismantling Joint

Dismantling Joint Featured Image
  • Dismantling Joint

Short Description:


Download as PDF

Product Detail

Serve to Global Premium Pipe Supplier

Shipping and Packaging

Inspect the Goods and Certificate

Exhibition

Product Tags

Technical Characteristics

  • Flange end connections according to EN1092-2: PN10/PN16
  • Designed according to EN545
  • Maximum working pressure: PN16 / 16 bar
  • Working temperature: 0°C – +70°C
  • Color RAL5015
  • Powder epoxy coating 250 μm thickness
  • Body from ductile iron EN-GJS-500-7
  • Bolts, nuts and washers – hot dip galvanized 8.8 carbon steel
  • Gasket – EPDM or NBR

Dimensions

DN Flange drill. D L1min L1max Bolts Qnty & Hole Size Weight
50 PN10/16 165 170 220 M16 4×19 9.9
65 PN10/16 185 170 220 M16 4×19 12.6
80 PN10/16 200 190 240 M16 8×19 15.8
100 PN10/16 220 200 250 M16 8×19 18
125 PN10/16 250 200 250 M16 8×19 22
150 PN10/16 285 200 250 M20 8×23 28.7
200 PN10 340 200 250 M20 8×23 35.5
200 PN16 340 200 250 M20 12×23 41.5
250 PN10 400 210 260 M20 12×23 53.1
250 PN16 400 210 260 M24 12×28 58.3
300 PN10 455 220 270 M20 12×23 61.6
300 PN16 455 220 270 M24 12×28 74.5
350 PN10 505 230 280 M20 16×23 82.5
400 PN10 565 240 290 M24 16×28 95
500 PN10 670 260 310 M24 20×28 126.2
600 PN10 780 280 330 M27 20×31 170
700 PN10 895 290 340 M27 24×31 235
800 PN10 1015 300 350 M30 24×34 248
900 PN10 1115 310 360 M30 28×34 327
1000 PN10 1230 315 365 M33 28×37 354
1200 PN10 1455 350 400 M36 32×40 507
