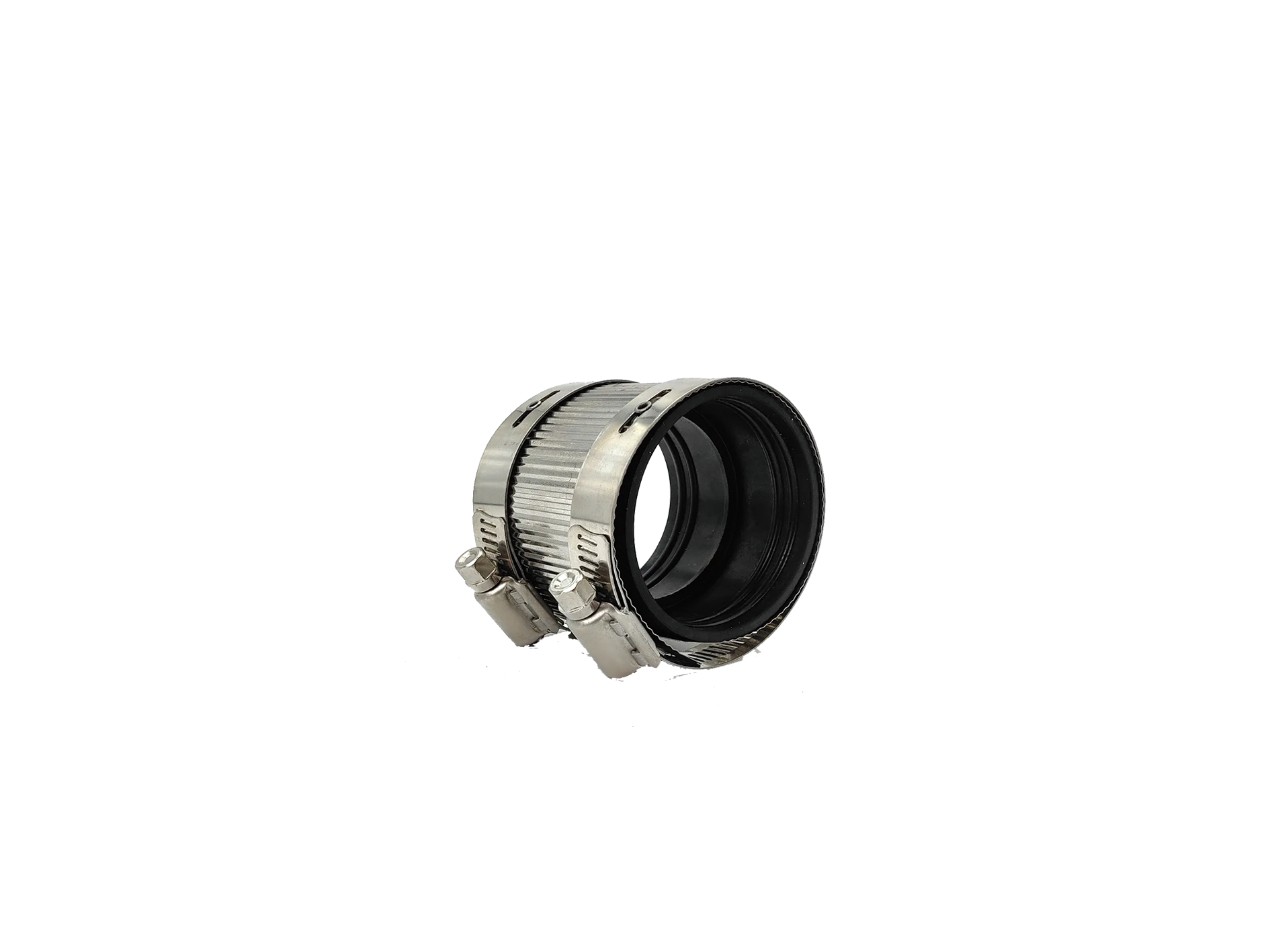

NO-HUB Coupling

Short Description:

Item No.: DS-AH
The No-Hub Coupling has a patented shield design that provides maximum transfer of pressure from the clamps to the gasket and pipe. Engineered to connect no-hub cast iron pipe in applications, replacing the less-efficient hub and spigot.

Send email to us Download as PDF

Product Detail

Serve to Global Premium Pipe Supplier

Shipping and Packaging

Inspect the Goods and Certificate

Exhibition

Product Tags

Features

Connects Cast Iron Pipe to Cast Iron Pipe
Fernco no hub couplings offer long-lasting performance and the preferred way to connecting cast iron pipes together without the need for a traditional hub and spigot joint.
Specially Beaded Gasket
Meeting the requirements of ASTM C564, the beaded gasket consists of an elastomeric compound with strategically positioned grooves and beads. When tightened, the shield attaches to the grooves to provide exceptional sealing pressure and holding power.
Interlocking Clamp Design
The clamps feature a one-piece screw housing that mechanically interlocks to the band. This design eliminates leak paths that can occur in staked or welded clamps.
Floating Eyelet Design
Fastenting the clampes to the shield, the floating eyelets allow the clamp, band and shield to move independently. This freedom prevents the shield from crimping and future leakage..

Specifications

5/16″ hex-head screw applies 60 in.-lbs. of installation torque to the band/shield assembly.
Standard No-Hub Couplings conform to CISPI 310. Couplings comply with ASTM C 1277. Gaskets are made from an elastomeric compound that meets the requirements of ASTM C 564

Previous: Heavy Duty Soild Clamp

Next: CV Duo Coupling

Dinsen Impex Corp. is a professional supplier and manufacturer for Cast Iron Pipes, Fittings, Couplings which was used for sewer drainage system of buildings. All our products are meet USA and European standard EN877, DIN19522, BS416, BS437, ISO6594, ASTM A888, CISPI 301, CSA B70, GB/T12772.

With a team of skilled and experienced members, we are capable of providing high quality cast iron pipe. Before supplying we make sure that cast iron pipe are strong and durable with accurate measurements and long service life.

Dinsen Impex Corp goal is to supply products with the best services, best quality and the competitive price and satisfy the requirements of clients from domestic and abroad. We believe that our company will have a speed develop with the support from both at home and abroad.We sincerely hope to establish long term and mutual beneficial cooperation with any buyer and friend all over the world !

Transportation: Sea freight, Air freight, Land freight

We can flexibly provide the best transportation method according to customer needs, and try our best to reduce customers’ waiting time and transportation costs.

Type of Packaging: Wooden pallets, steel straps and cartons

1.Fittting Packaging

2. Pipe Packaging

3.Pipe Coupling Packaging

DINSEN can provide customized packaging

We have more than 20⁺ years experience on production. And more than 15⁺ years experience to develop oversea market.

Our clients are from Spain, Italy, France, Russia, USA, Brazil, Mexican, Turkey, Bulgaria, India, Korea, Japan, Dubai, Iraq, Morocco, South Africa, Thailand, Vietnam, Malaysia, Australia, German and so on.

For quality, don’t need to worry, we will inspect the goods twice before delivery . TUV, BV, SGS, and other third party inspection are available.
